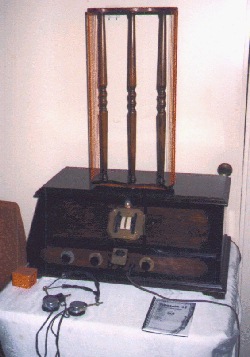

1925 Radiola Model 25 (AR-919)
Click on the logo below to hear this radio!

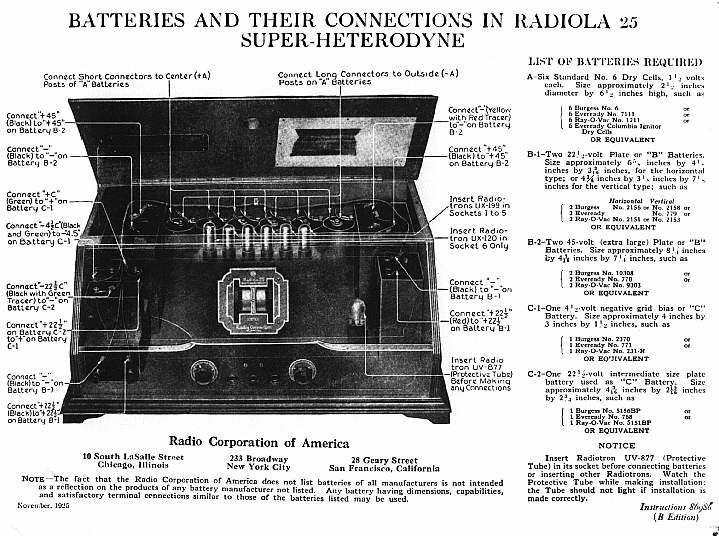

OK, now we're getting into some VERY early territory! This set was one of the first battery-powered superhets to come out. The battery configuration is absolutely horrendous; here is a scan of the diagram of how the A, B, and TWO C supplies are wired up and hooked into the cabinet. It looks a great deal like the spaghetti explosion in the back of your PC!
By the way, we completely re-created the battery diagram; the original, when we got it, was acid-eaten and brown; we took it to a litho/photo operation, had a plate made of it, and had several perfect copies run off. If you have one of these sets and are missing the diagram, let me know. We have several....somewhere! :p
General Specifications
Design Type | Tuning Range | Number of Tubes | Weight | Power Consumption | Original Selling Price | Permanent Collection |
Superhet
| .540-1500 Khz
| Seven
| 45 Pounds
| 15 Watts (approx)
| unknown
| Yes
|
Tube Complement and Types
Batteries | RF Stage | IF Stages | Detector | Audio Stages |
135V, 90V, 45V, 22 1/2V, 4.5V,(C) 4.5V(A)
| UX-199
| UX-199(2)
| UX-199
| UX-199,UX-120
|
